Method for controlling a rotation damper functioning according to the gyroscopic principle

Method for controlling a rotation damper functioning according to the gyroscopic principle
Autor:

Koch, Thilo

Scheurich, Bastian

Gauterin, Frank

Frey, Michael

Links:
Quelle:
EP000003245422B1
Datum: 20.02.2019

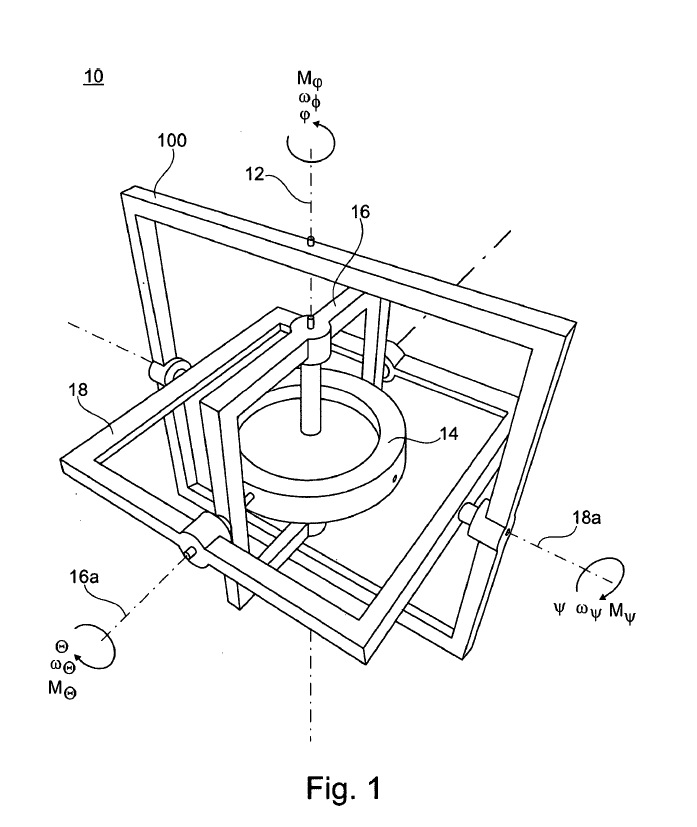

A method for controlling a rotation damper operating according to the gyroscopic principle for a motor vehicle, wherein the rotation damper includes a flywheel, which is driven by a drive and rotating about a rotation axis with an angular velocity .omega..sub..phi., which is cardanically mounted via a first bearing element and via a second bearing element, wherein the flywheel is rotatably mounted on a first bearing element and at a rotation angle .phi., and the first bearing element is rotatably mounted on a second bearing means about a first axis that is oriented orthogonally to the rotation axis of the flywheel, and the second bearing element is rotatably mounted at a second rotational angle (.psi.).
